PN Logger - High Speed Hydrographic Analogue Data Logger

ESL and Collins Software Services have developed PN Logger a high  speed analogue data logging version of the survey grade Portable Navigator  It incorporates support for two different analogue "front ends" covering high accuracy, 24 bit resolution at lower speeds from PICO Technology and fast 16 bit resolution at high speeds of up to 30 samples per second from Data Translation. It provides position interpolation from the GPS input. Also supported is high speed digital data input via NMEApro at up to 38400 baud.

PN Logger is ideal for magnetic survey work in Intertidal and other difficult or dangerous environments at higher speeds using hovercraft or wheeled land vehicles. Examples of applications include Mine Clearance and Pipeline Routing. An array of up to 4  magnetic transducers can be boom mounted ahead of the vehicle or towed as an array with the geometry specified. The transducer outputs are recorded together with the transducer positions calculated and interpolated from the GPS antenna position. Swathe plotting is provided for monitoring ground coverage..

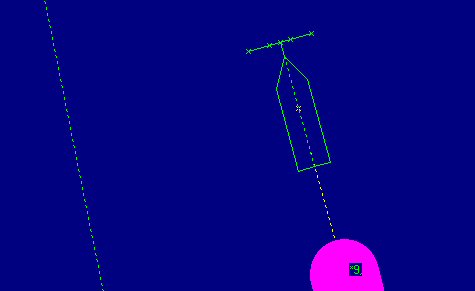

Chart Display with Transducer Boom and Swathe Plot

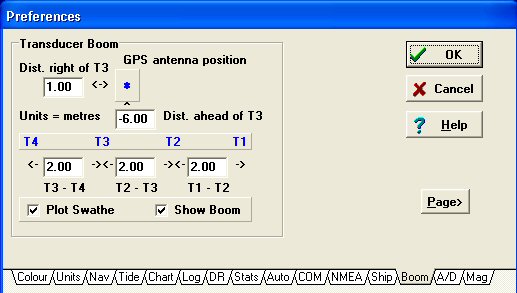

Transducer Boom Geometary Configuration Dialogue

The software also has automatic magnetic environment and heading correction and calibration to remove errors caused by the vessels magnetic footprint and its interaction with the earths magnetic field.

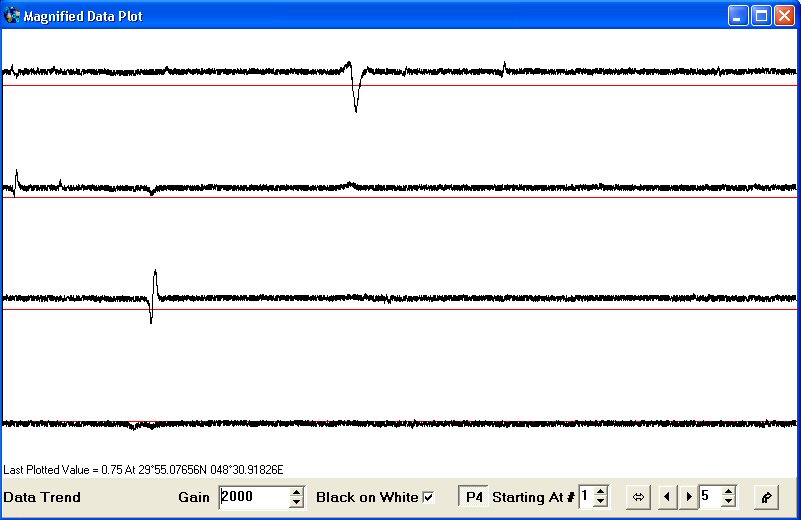

Four Transducer Plot Using Data Zoom to Show Fine Detail
